Mapping Your Rooms

The Builder Graph is a portal page for builders. Give it a set of rooms and it draws them: each room as a circle, each exit as an arrow to where it leads. Rooms with coordinates sit on a grid, north up, one level at a time. Beside the map is a list of things to fix, such as a room with no description or an exit with no way back. Export saves the rooms as a file you can keep with the rest of your notes and compare against a later copy, and Import builds what you change in that file. You can also drag a room to a new place on the grid.

This page covers:

• Setting it up
• Giving rooms coordinates
• The checks
• Exporting rooms
• Moving rooms
• Importing changes

The examples use a small workshop: Gate (#18), Yard (#19), Forge (#20), Store (#21), Loft (#22) above the Forge, and Cellar (#23) under the Store.

Setting it up

The Builder Graph is the builder-graph package. It does not ship with the server: its files are in the examples/packages/builder-graph folder of the SharpMUSH source repository. It is a browser page, with no softcode and no world objects. Hosted pages only run when the allow_browser_code option is on:

> @config/set allow_browser_code=yes
Option set.

1. Make a ZIP of the five files in examples/packages/builder-graph (package.yaml, ui.json, index.html, graph.js and graph.css), all at the top level.
2. In the portal, open Admin, then Packages, press Upload plugin, choose the ZIP, review it and apply it. This needs the packages administration permission.
3. Open Admin, then Applications, and add an application. Tick Plain HTML/JavaScript package, enter builder-graph as the Installed definition ID, 1 as the Config version, a slug such as workshop, and an Instance JSON config naming the rooms:

{"title":"Workshop","rooms":[18,19,20,21,22,23]}

The page is then at /apps/workshop. Each application is its own page with its own rooms, so a game can have one per area. The page shows only what the character you are playing may examine: installing the package gives nobody access to rooms they could not already examine.

The config takes up to 100 rooms and two optional keys:

Key	Default	What it does
coordinates	["X","Y","Z"]	The three attributes a room’s position is read from
warnings	["room-desc","exit-unlinked","exit-oneway","exit-multiple","lock-checks"]	The checks the list shows, by their @warnings names

Giving rooms coordinates

A room’s position is three numbers in attributes on the room: x to the east, y to the north and z for the level. These are the same attributes the gmcp-room package sends to a MUD client’s mapper, so one set of numbers serves both.

> &X #20=1
> &Y #20=1
> &Z #20=0

A missing axis counts as 0. A room with none of the three set, or with one that is not a number, has no coordinates. Such rooms are drawn below the grid with a dashed outline, grouped by the exits between them.

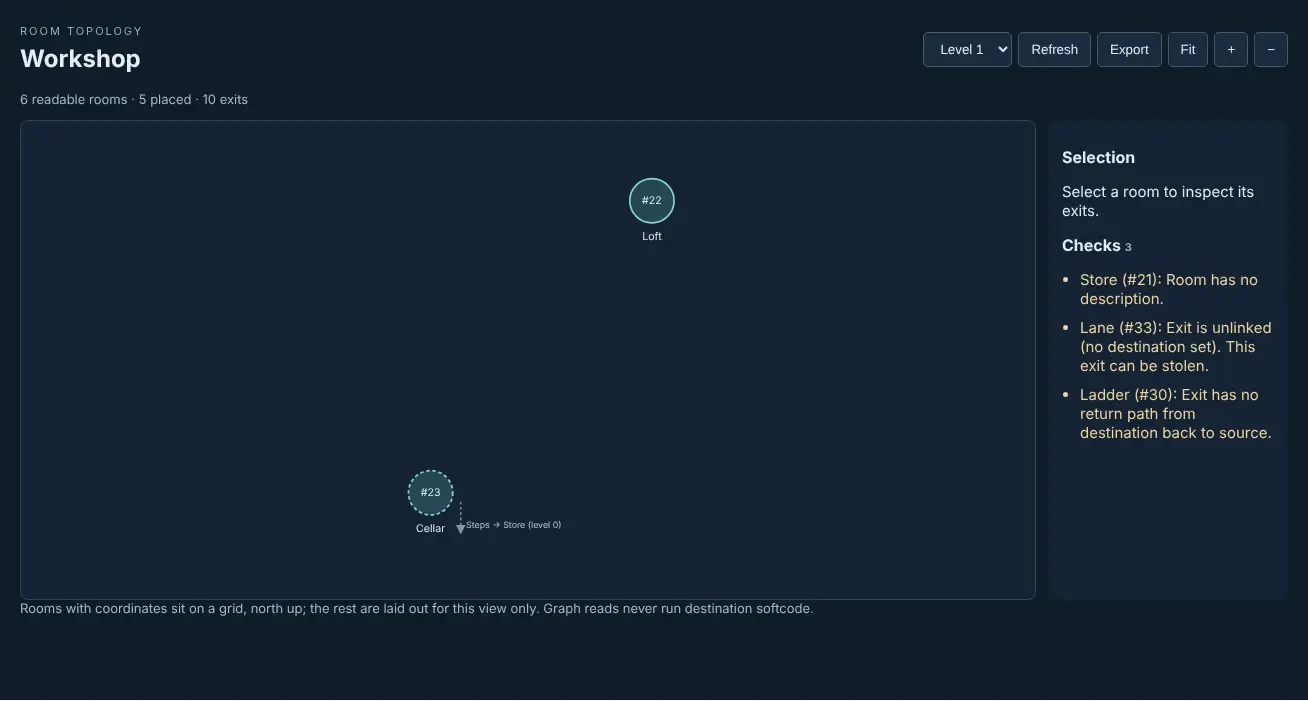

When the rooms span more than one level, a level picker appears. An exit to a room on another level is a short dashed stub, pointing up or down, labelled with the exit and where it goes. Choosing a room lists its exits and its coordinates.

The checks

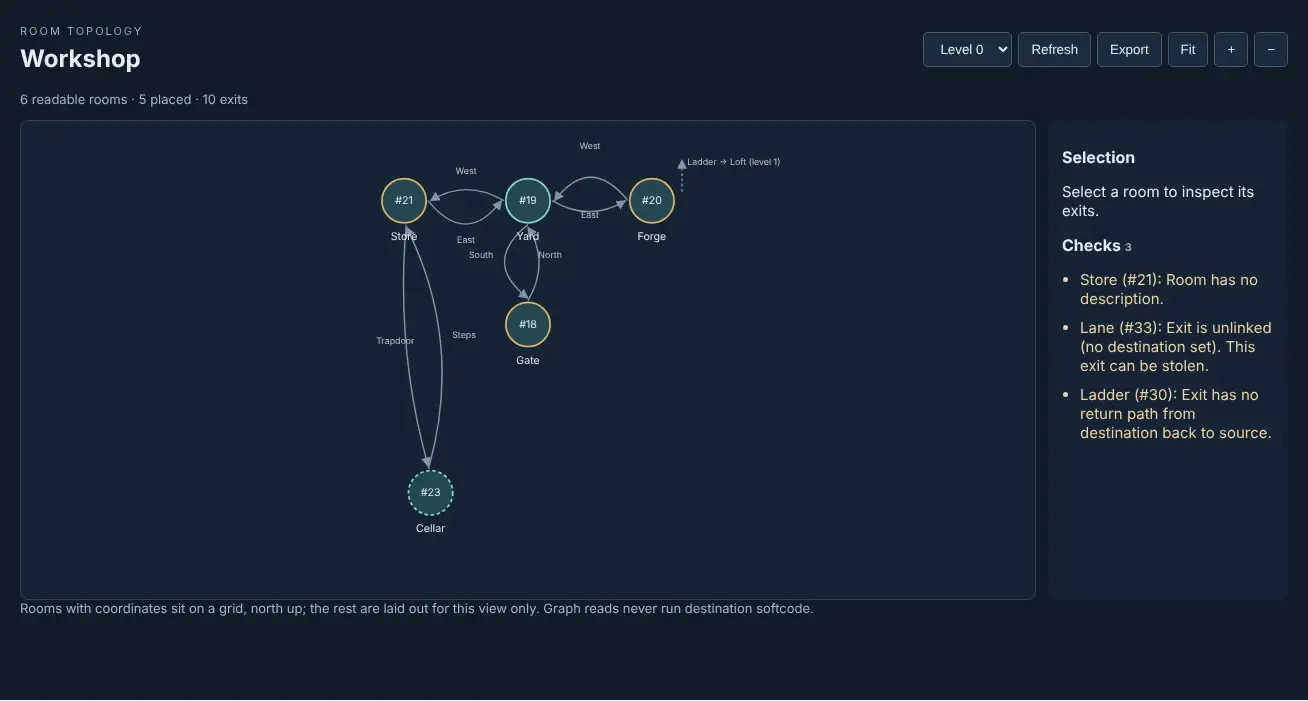

The Checks list shows what @wcheck would report for the rooms and their exits, whichever checks your own @warnings turn on. A room with something to fix has an amber outline, and choosing a line selects its room.

Check	What it finds
room-desc	A room with no description
exit-unlinked	An exit that leads nowhere, which anyone may take over with @link
exit-oneway	An exit with no exit back from where it leads
exit-multiple	An exit with more than one exit back
lock-checks	A lock that does not parse, or refers to something that is not there
exit-desc	An exit with no description (off unless named)
exit-msgs	An exit missing its SUCCESS, OSUCCESS, ODROP or FAILURE messages (off unless named)

exit-oneway and exit-multiple only look at exits between the rooms on the page. An exit to a room outside them is not checked for a way back. Objects set NO_WARN, and objects whose owner is set NO_WARN, are left out, as they are for @wcheck.

Exporting rooms

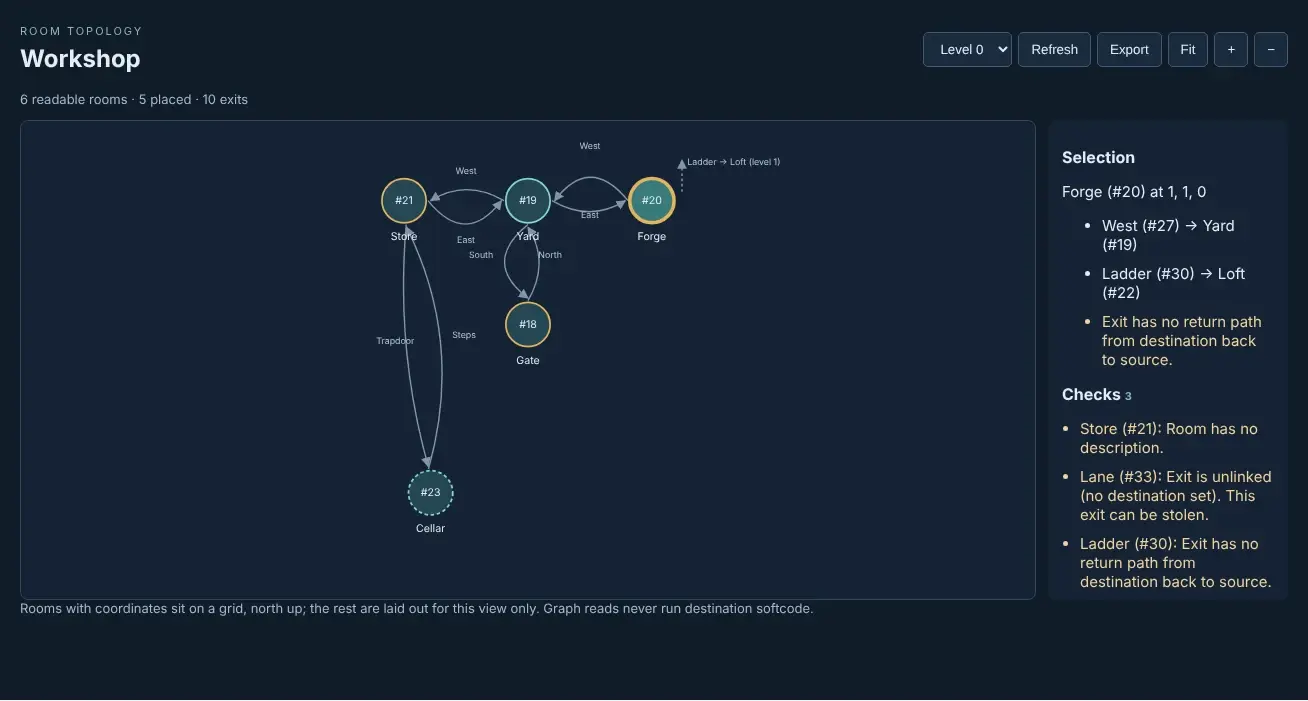

Export saves the rooms on the page as <title>.rooms.json. The workshop’s export starts:

{
  "format": "sharpmush-rooms",
  "version": 1,
  "coordinates": ["X", "Y", "Z"],
  "rooms": [
    {
      "id": "#18",
      "name": "Gate",
      "description": "Iron gates stand open onto the workshop yard.",
      "coordinates": [0, 0, 0],
      "exits": [
        {"id": "#24", "name": "North;n", "to": "#19", "description": ""},
        {"id": "#33", "name": "Lane", "to": "unlinked", "description": ""}
      ]
    },

Rooms and exits are in dbref order, so two exports of rooms nobody changed are the same file, and a file compare shows only what changed. An exit’s name carries its aliases after ;, the way @open takes it. to is where the exit leads:

to	Means
#19	A room, by dbref
home	The exit is linked to HOME
variable	Where it leads is worked out each time someone uses it
unlinked	It leads nowhere
non-room	It leads to a player or thing, not a room
hidden	It leads somewhere you may not see

Descriptions are each room’s and exit’s own DESCRIBE, as plain text. Rooms with more than 500 exits between them, or a file of more than 2 MiB, are too much for one export; export fewer at a time.

Note

Reading the map never runs any softcode. A variable exit’s destination is not worked out, and nothing on the page is evaluated.

Moving rooms

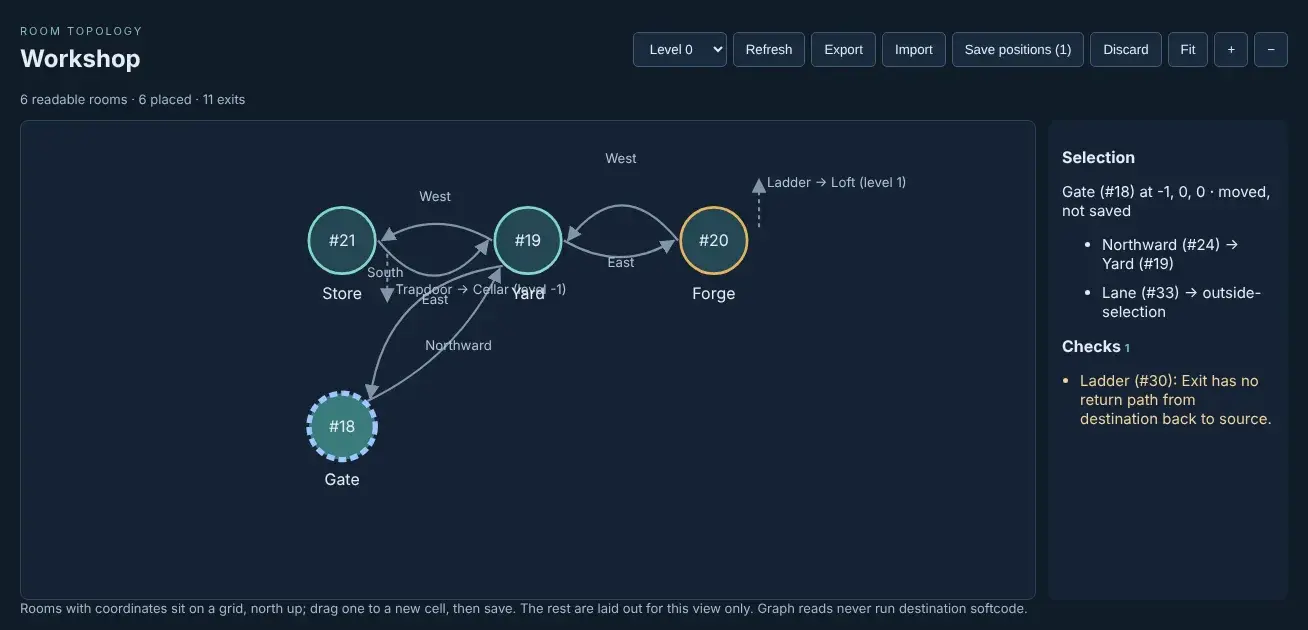

Drag a room to another cell of the grid. The room moves on the page only, with a dashed blue outline, and Save positions appears with the number of rooms moved. Discard puts them back.

Save positions writes the new X, Y and Z of each moved room, after you confirm, in the same way as an import.

Importing changes

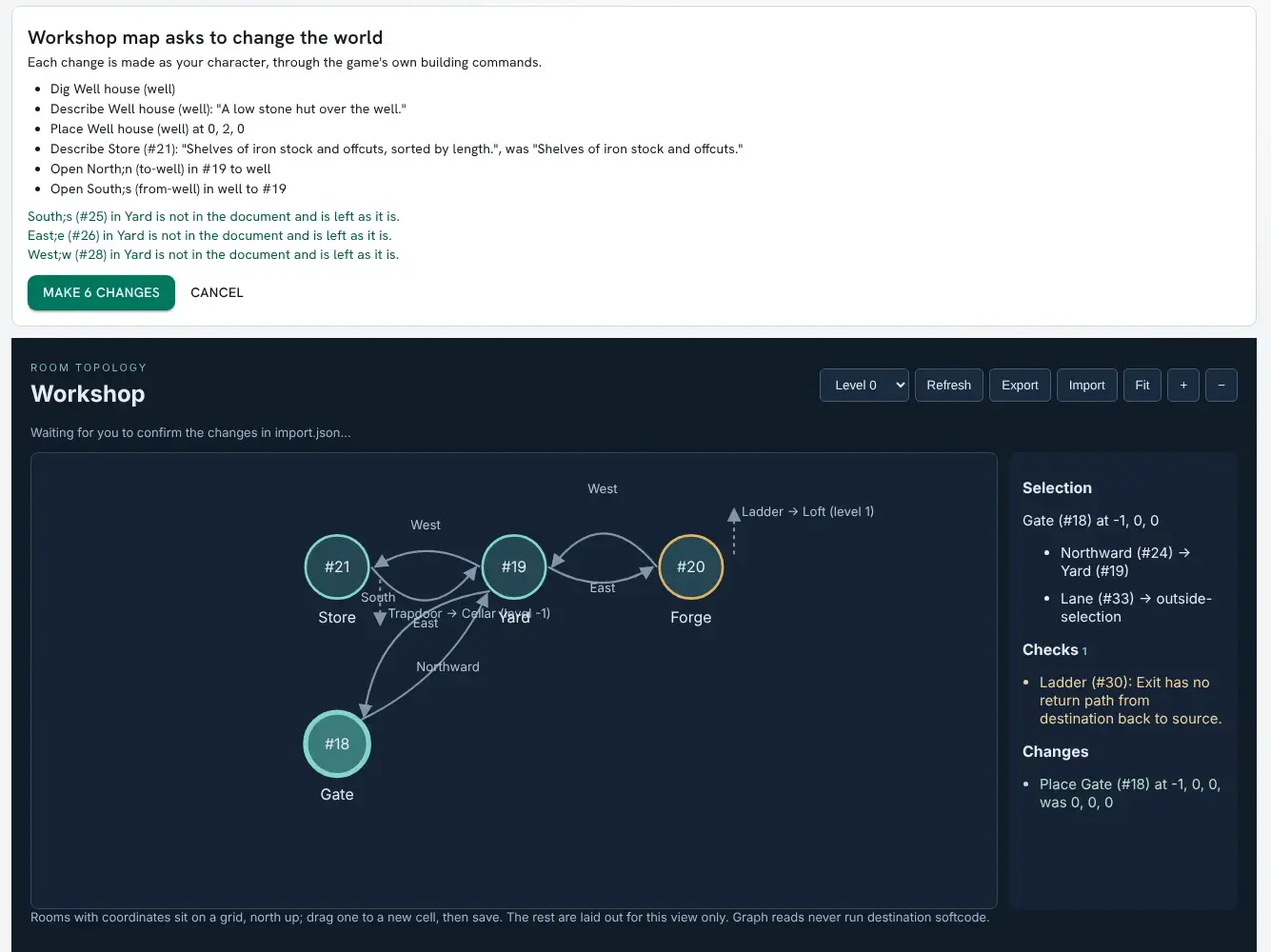

Import reads a room file, works out what it would change, and shows the list above the page. Nothing changes until you press Make N changes; Cancel leaves everything as it was.

The page cannot make or skip this confirmation: the portal draws it, outside the page. Each change is made as the character you are playing, with @dig, @open, @name, @link and @unlink, so the game’s quota, locks and link rules apply, as they would if you typed the commands.

A file only has to list what it changes. This one adds a well house north of the Yard, with exits both ways, and lengthens the Store’s description:

{
  "format": "sharpmush-rooms",
  "version": 1,
  "coordinates": ["X", "Y", "Z"],
  "rooms": [
    {"id": "#19", "exits": [{"id": "to-well", "name": "North;n", "to": "well"}]},
    {"id": "well", "name": "Well house", "description": "A low stone hut over the well.", "coordinates": [0, 2, 0],
     "exits": [{"id": "from-well", "name": "South;s", "to": "#19"}]},
    {"id": "#21", "description": "Shelves of iron stock and offcuts, sorted by length."}
  ]
}

Once the changes are made, the page says what each new room and exit became:

Made 6 changes. well is #39, to-well is #40, from-well is #41; export again before editing the file further.

How a file is read:

In the file	Means
An id that is a dbref, #19	A room or exit that is there now
An id of your own, well	A new room or exit, dug or opened by the import
A field left out	Left as it is
"description": ""	Clear the description
"coordinates": []	Remove the coordinates
"to"	A dbref, home, unlinked, or the id of a new room in the same file. variable, hidden and non-room leave the link as it is

An import never destroys anything. A room or exit the file leaves out stays, and the confirmation lists any exit of a listed room that the file does not mention. An exit stays in the room it is in. You need to control each room and exit the import changes, and to be able to see each room an exit is linked to.

An import that lists problems, such as a destination that is not there or a room you do not control, makes no changes at all. If the rooms change between the confirmation and the import, for example because another builder renamed one, the import is refused and you are asked to look again. When the game refuses one change, such as a @dig over your quota, the import stops there; the changes before it stay made and the page lists them.

Note

New rooms are not on the page until you add their dbrefs to the application’s rooms. Export again after an import, so the file has the new dbrefs instead of your own names: importing the same file a second time would dig the rooms again.
