Discord

The Discord plugin links channels on a Discord server to the game. Each linked channel is a feed, discord/<channel id>, and every line sent on that feed is posted in the channel under the speaker’s name. What goes on the feed is up to the game’s softcode: a command, a tap on another feed, or an event. A linked member’s message in the channel comes back the other way, as a line on the feed spoken by the character they chose.

You want to	Read
see how a line gets to Discord	How it works
make the bot and connect it	Setting up the bot
link a channel	Linking a channel
link a member’s Discord account to their game account	Discord for Players
speak in the game from Discord	Discord for Players
know what the Linked role does	The Linked role
post from softcode	Sending lines
join a game channel to a Discord channel	Joining a game channel
give members Discord roles from their game roles	Mapping roles
do all of this from the portal	The Discord page
ban a member on Discord when they are banned in the game	Game bans
list the game’s events in Discord’s Events tab	Scheduled events
fix a link that stopped	When a link stops

Setting up the bot and linking channels need the discord.admin permission. Nobody holds it until it is given, wizards included: @role/assign <player>=discord-admin gives the Discord Admin role, which allows it, and @role/allow <role>=discord.admin hands it to a staff role the game already has. Members link their own accounts and choose their own characters.

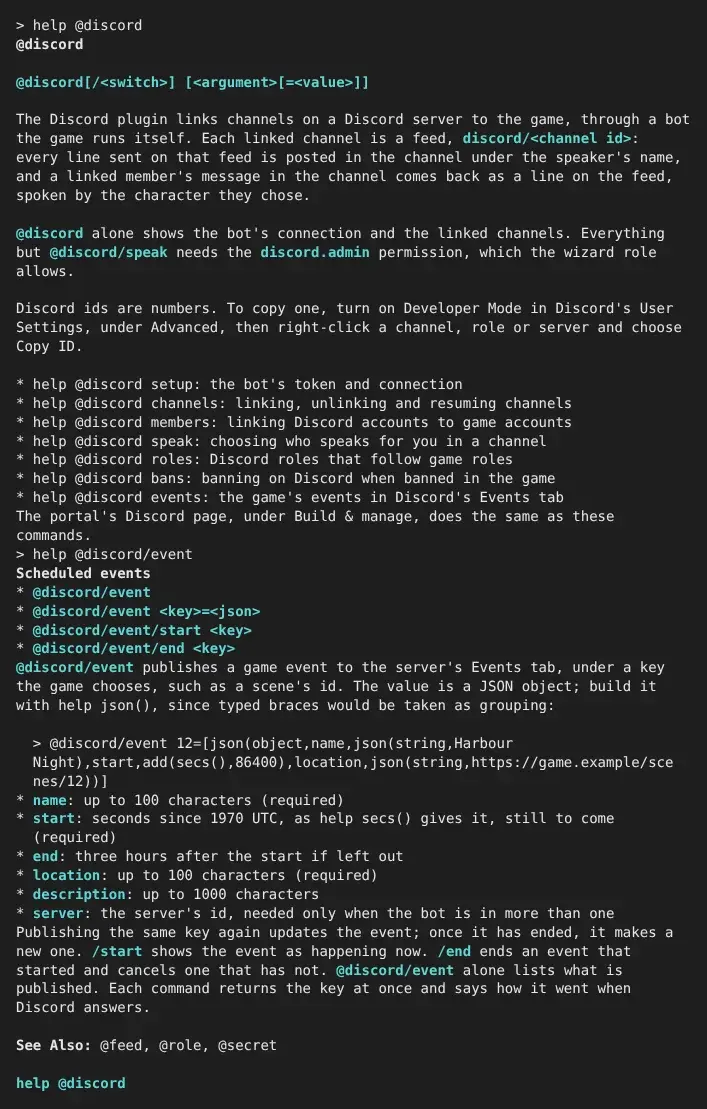

In the game, help @discord covers every switch, and help @discord/<switch> goes straight to one. The help is there only while the plugin is loaded.

How it works

Each game runs its own bot, from a Discord application the game’s administrator makes. The bot’s token is a secret, stored encrypted and never shown again.

Linking a channel makes a webhook in it, which is how the bot posts under each speaker’s name instead of its own. The webhook’s token is a secret too, named discord.webhook.<channel id>.

Each linked channel has its own queue, so a slow or broken channel holds up no other.

Setting up the bot

First install the discord package from the portal’s Packages page. It is bundled with the game but not installed until you choose it. It adds the discord.admin permission, the Discord Admin role, the discord feed kind and the Discord Bridge object that owns it.

Discord has no way for a program to make an application, so the first steps happen in Discord’s developer portal.

1. Open the Discord developer portal and choose New Application. Its name is the name players see on the bot.
2. On the application’s Bot page:
   • choose Reset Token and copy the token;
   • untick Public Bot, so nobody else can add it to their server;
   • under Privileged Gateway Intents, turn on Server Members Intent and Message Content Intent.
3. In the game, store the token and connect:

> @secret discord.token=<the token>
discord.token is set. Its value is never shown again.
> @discord/connect
[DISCORD] Done: Connecting to Discord. @discord shows how it went.

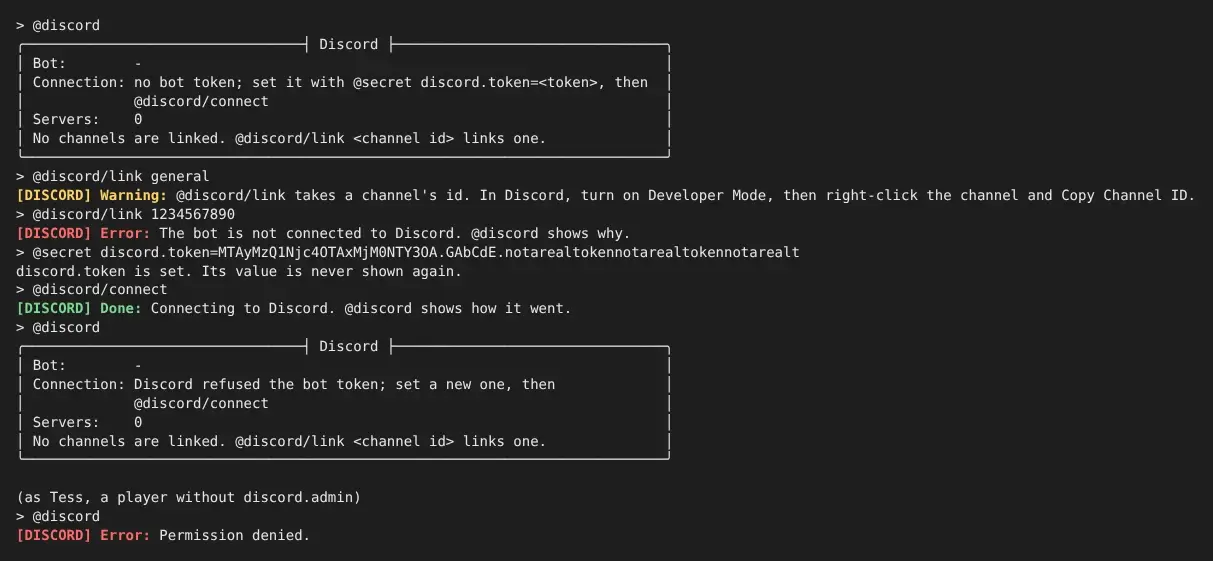

@discord shows where the connection stands. When something is wrong it says what to do next, and @discord/connect tries again once it is done:

Once Discord accepts the token, @discord ends with a line starting Add the bot to a server: and a link. Open it, pick the server, and keep every permission it asks for:

Permission	Why
View Channels, Read Message History	see the linked channels
Send Messages, Send Messages in Threads	post in them
Manage Webhooks	make each linked channel’s webhook
Manage Messages	replace a member’s message with the game’s version of it
Manage Roles	give linked members the Linked role, and let only that role post in linked channels
Create Events	publish the game’s events, such as scenes, as Discord events

Note

The token can also be given from outside the game, as the environment variable SHARPMUSH_SECRET_DISCORD_TOKEN or a file named discord.token in the secrets directory. See Secrets.

Linking a channel

Find the channel’s id. In Discord, open User Settings, then Advanced, and turn on Developer Mode. Right-click the channel and choose Copy Channel ID.

> @discord/link 1234567890123456789

The command returns at once, and tells you how it went when Discord answers: Linked #ooc in My Game. Lines sent on the feed discord/1234567890123456789 are posted there. Only linked members may post there.

The bot needs View Channel, Manage Webhooks and Manage Messages in that channel. A channel that takes them away from the bot’s role is refused, with the missing ones named. Threads cannot be linked.

Linking also changes the channel’s permissions, so that only members holding the Linked role (see The Linked role) may send messages: @everyone is denied Send Messages there and the Linked role allowed it. The channel’s other permissions stay as they were. If the bot cannot make that change, the link still works and the answer says why. @discord shows any channel that others can still post in, and @discord/gate <id> makes the change again once the cause is fixed.

@discord lists every link with its server, its id and its state. @discord/unlink <id> stops posting, deletes the channel’s webhook and forgets its token. The feed and its lines stay in the game.

The Linked role

Members link their own Discord accounts and choose the character that speaks for them: see Discord for Players.

The bot makes a role named Linked in each server it is in. It gives the role to every member linked to an active game account and takes it from everyone else, and checks every member each time it connects. A member whose game account is banned, disabled or closed loses the role, so they cannot post in linked channels, and gets it back when the account is active again. Renaming the role is fine, since the bot knows it by its id. If the role is deleted, the bot makes a new one the next time it connects. This needs the Manage Roles permission the invite asks for.

Sending lines

A linked channel’s feed is an ordinary feed (help @feed in the game), so anything that sends a line on it posts in Discord:

@feed/send discord/1234567890123456789=Server restart in ten minutes.

The line goes out under the name of the enactor, the player the code speaks for. How it reads in Discord:

Sent as	Posted as
say (the default)	the text, under the speaker’s name
pose (:waves.)	*Ann waves.* in italics
semipose (;'s back.)	*Ann's back.*
/as Ghost/...	the text, under the name Ghost

Colour and other markup become Discord’s own formatting where it has one, and are dropped where it doesn’t. Characters Discord treats as formatting, such as * and _, are posted as typed. A line never pings anyone, even when it names @everyone or a role.

Some lines are not posted:

• a line sent to only some members with @feed/send/to, since everyone in the Discord channel would see it;
• a line still waiting after a minute, because Discord was down or slow. A flood of old chat reads worse than a gap. Past 200 waiting lines, the oldest are dropped too.

A line longer than one Discord message is split at spaces into up to three posts.

When a moderator deletes one of the game’s posts in Discord, the line leaves the feed’s recall (what feedrecall() and feedmsg() read), and the audit log records it as feed.line.delete. Players who already saw the line still have it on their screens. The bot remembers which line each post carries for 90 days; deleting an older post leaves its line.

Joining a game channel

The discord-channels package joins a game channel to a linked Discord channel, both ways. What is said on the game channel is posted in Discord, and what members post in Discord comes back onto the game channel as the character they speak as. Install it from the Packages page; it needs the discord package and the event handler chosen in first-run setup.

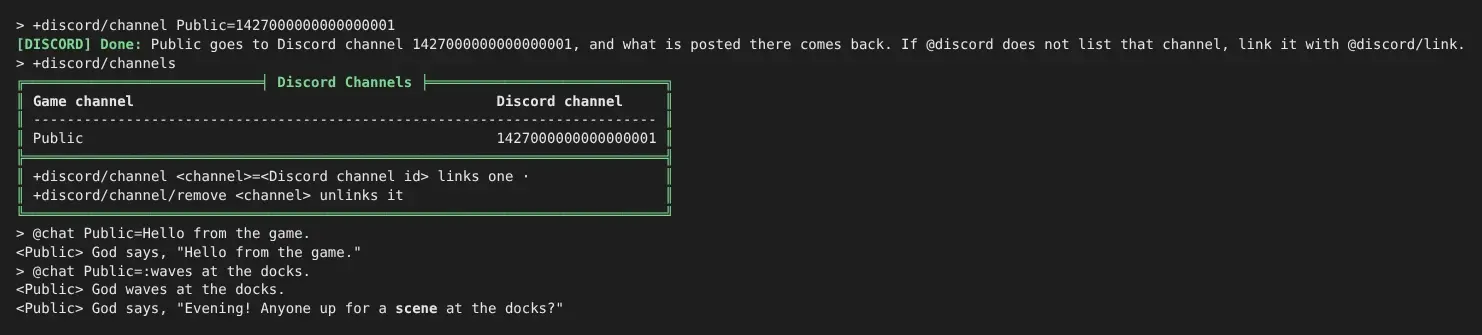

> +discord/channel Public=1234567890123456789

• +discord/channels lists the game channels that go to Discord.
• +discord/channel <channel>=<Discord channel id> joins them. @discord lists the linked Discord channels with their ids.
• +discord/channel/remove <channel> takes them apart.

Only the channel’s owner, or staff with chat.admin, joins or parts a channel. Each game channel goes to one Discord channel, and each Discord channel to one game channel.

• A private channel needs /confirm. A channel with a see or join lock is refused at first, because everyone who can read the Discord channel reads what is said on it. +discord/channel/confirm <channel>=<id> joins it anyway.
• Speakers must pass the feed’s send lock. A game line reaches Discord only if its speaker may send on the Discord channel’s feed.
• Connect and disconnect lines stay in the game. An @cemit line, which names no speaker, is posted under the channel’s name.
• A line from Discord reads like any other on the game channel: God says, "...".
• Renaming the game channel parts it from Discord. Join it again under its new name.

A line goes one way only, so nothing comes back round: a line from Discord is not sent there again. Softcode can tell the two apart the same way. A tap on the discord kind gets %<origin>, which is discord/<message id> for a line a member posted and empty for a line sent in the game.

Mapping roles

@discord/map ties a Discord role to a game role. A linked member holds the Discord role while their game account, or one of its characters, holds the game role, and loses it when they no longer do. A member whose account is disabled, banned or closed holds no mapped role.

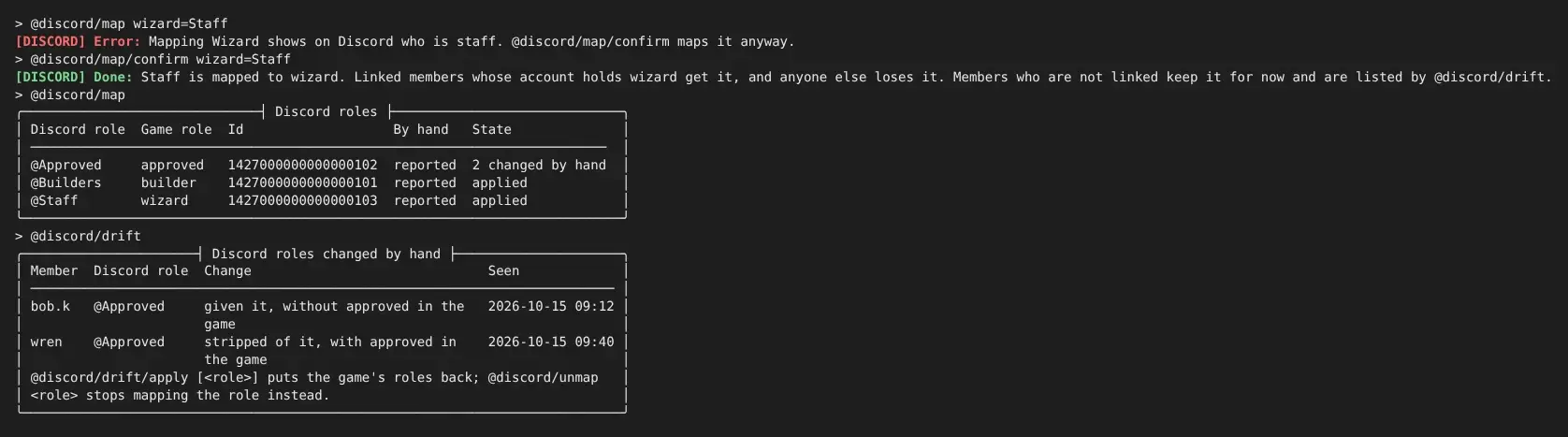

> @discord/map builder=@Builders

• @discord/map lists the mapped roles. The State column says whether the bot can manage each one, and how many members were changed by hand.
• @discord/map <game role>=<Discord role> maps one. Name the Discord role, with or without the @, or give its id.
• @discord/unmap <Discord role> stops mapping it. Members keep the role as it is.

The bot checks every member when it connects, once a day, and whenever an account’s roles change in the game. It needs the Manage Roles permission, and its own role must sit above each mapped role in the server’s role list. @discord/map says when either is missing.

Some mappings are refused:

• everyone, player and god, which the game hands out itself.
• A role that allows administrator, and a role not below your own highest role.
• wizard and royalty until confirmed, since the Discord role shows everyone who your staff are. @discord/map/confirm wizard=Staff maps it anyway.
• On the Discord side, @everyone, a role Discord manages for a bot or a boost, the Linked role, and a role already mapped.

Changes made by hand

Someone with Manage Roles can still give or take a mapped role in Discord. The bot does not undo that at first. It records the change, and @discord/drift lists it until staff decide:

• @discord/drift/apply puts back the game’s answer for every role changed by hand. @discord/drift/apply <Discord role> does it for one role.
• @discord/unmap <Discord role> keeps Discord’s version instead.

@discord/map/enforce <Discord role> makes the bot put a change back at once, and still list it. @discord/map/report <Discord role> goes back to listing only.

A member who has not linked their account is never given a mapped role. If they hold one, the bot lists it as a change made by hand rather than taking it, unless the role is enforced.

Game bans

A game ban always takes the Linked role and every mapped role, and the member’s messages stop reaching the game. The bot can also ban them on Discord. This is off until staff turn it on:

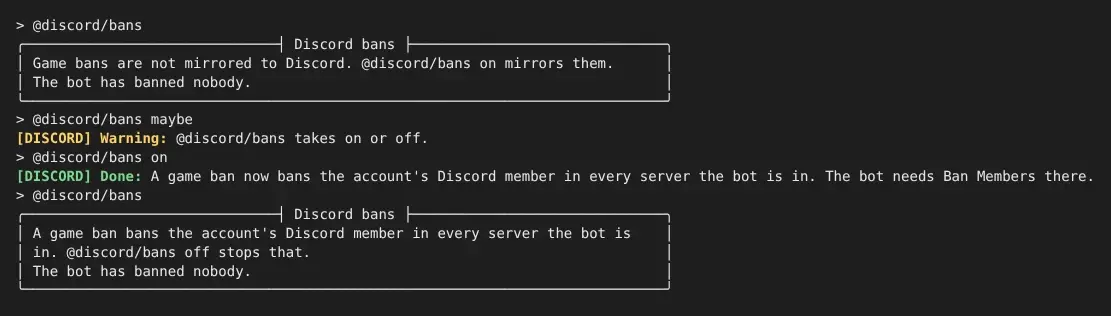

> @discord/bans on

• With mirroring on, banning a game account bans its linked Discord member in every server the bot is in. Turning mirroring on also bans the members of accounts banned already.
• When the game ban is lifted or runs out, the bot lifts the Discord bans it made. A Discord ban staff made themselves is left alone, and so is one staff lifted by hand.
• @discord/bans off stops new bans. Bans the bot already made are still lifted when their game bans end.
• A disabled or closed account is not banned on Discord; only a ban is mirrored.
• @discord/bans says whether mirroring is on and lists the members the bot banned.

The bot needs the Ban Members permission for this. The invite link asks for it while mirroring is on, and the setup checklist names any server where the bot lacks it.

Scheduled events

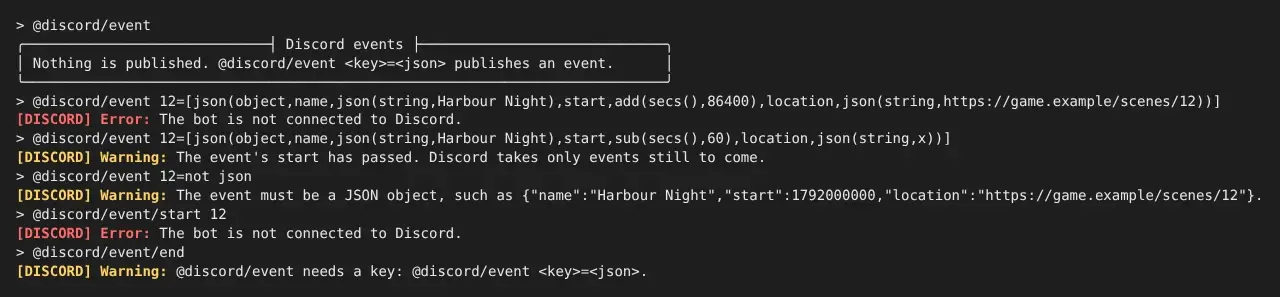

@discord/event puts a game event in the server’s Events tab, where members can mark themselves interested. It is one way: the game says what the event is, and an edit made to it on Discord lasts only until the game publishes it again. Each event has a key the game picks, such as a scene’s id, and later changes name the same key.

> @discord/event 12=[json(object,name,json(string,Harbour Night),start,add(secs(),86400),location,json(string,https://game.example/scenes/12))]

The part after = is a JSON object. Build it with json(): typed straight into a command, its braces would be taken as grouping and dropped.

Field	What it is
name	the event’s name, up to 100 characters (required)
start	when it starts, in seconds since 1970 UTC, as secs() gives it (required; still to come)
end	when it ends; three hours after the start if left out
location	where it happens, up to 100 characters, such as the scene’s page on the game’s website (required)
description	up to 1000 characters
server	the server’s id; needed only when the bot is in more than one

• Publishing the same key again updates the event while it is still to come. Once it has started, ended or been cancelled, publishing ends it and makes a new one, since the start given is still to come: a scene that was paused and moved to another day.
• @discord/event/start <key> shows the event as happening now.
• @discord/event/end <key> ends an event that started and cancels one that has not.
• @discord/event lists the events the game has published.

Each command answers at once with the key, then says how it went when Discord replies:

Scheduled scenes

The discord-scenes package publishes the game’s scheduled scenes this way, so nobody has to type @discord/event. It needs the Scene plugin as well as the Discord plugin, and the event handler chosen in first-run setup. Install it from the Packages page.

Its Discord Scenes object does the publishing, and gives itself the Discord Admin role to do it.

A scene scheduled with +scene/schedule then shows in the Events tab, under the scene’s title, with its summary as the description and its page on the game’s website as the place. When the game has no website address (mud_url), the place is the game’s name and the scene’s room. After that the event follows the scene:

In the game	On Discord
+scene/reschedule, +scene/title	the event moves or is renamed
+scene/start	the event shows as happening now
+scene/finish	the event ends
+scene/cancel	the event is cancelled
+scene/pause with a new time	a new event at that time
+scene/pause with no time, or the scene made members-only	the event is taken down

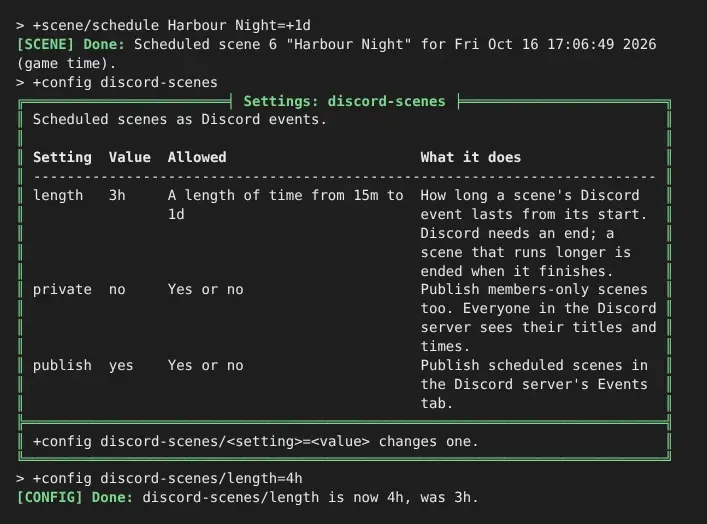

Only scenes anyone may watch are published. Three settings change that, through +config:

Setting	As shipped	What it does
discord-scenes/publish	yes	no stops publishing; events already up stay until their scenes finish
discord-scenes/private	no	yes publishes members-only scenes too, and everyone in the server sees their titles and times
discord-scenes/length	3h	how long an event lasts from its start; a scene that runs longer ends when it finishes

Each scene is published under the key scene-<id>, so @discord/event lists them beside any the game published by hand. +help discord scenes covers the same ground in the game.

The package is built on two events the Scene plugin raises: SCENE`STATUS when a scene is made or its status changes, and SCENE`CHANGE when its time, title or another of its keys does (help event scene). A game that wants other rules can write its own handler on them instead.

The Discord page

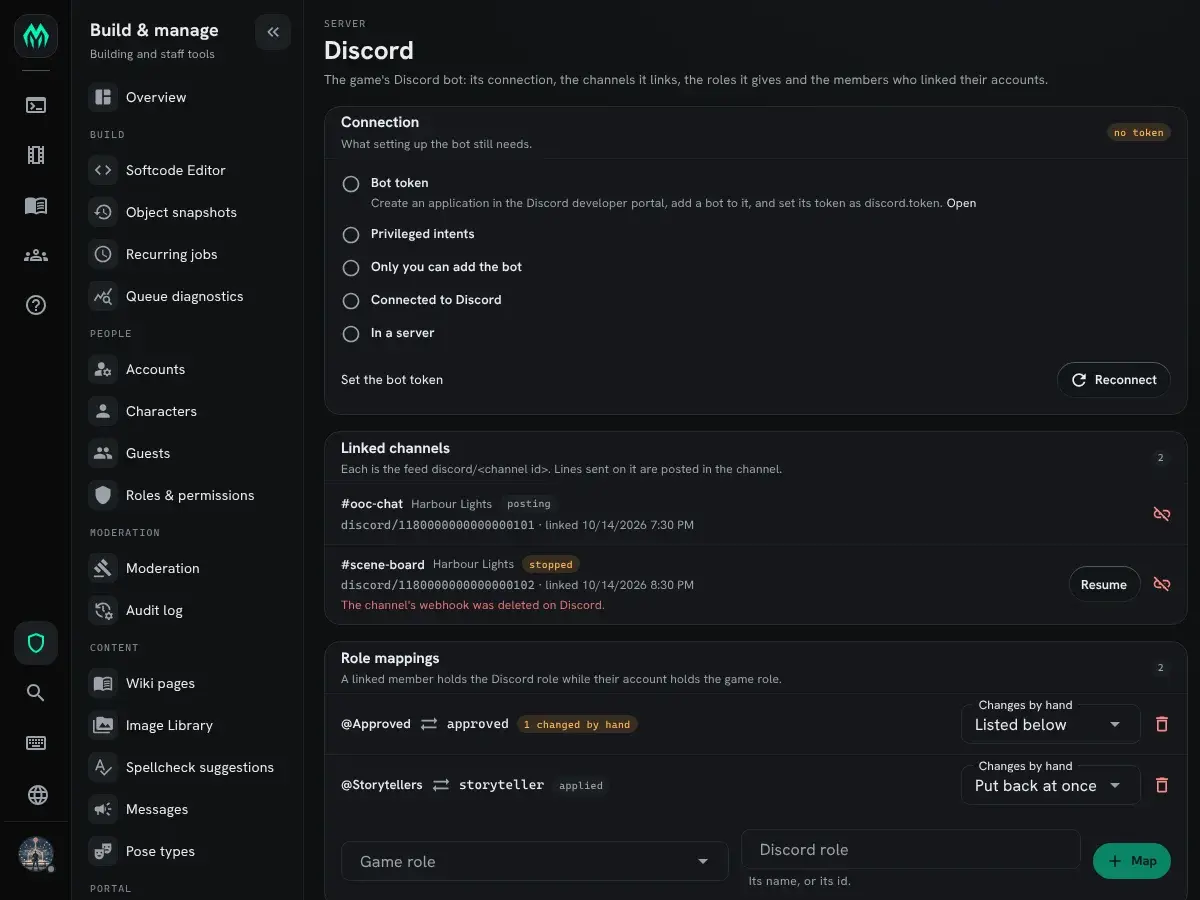

Staff with the discord.admin permission find a Discord page in the portal, under Build & manage, Server. It does what the @discord commands do:

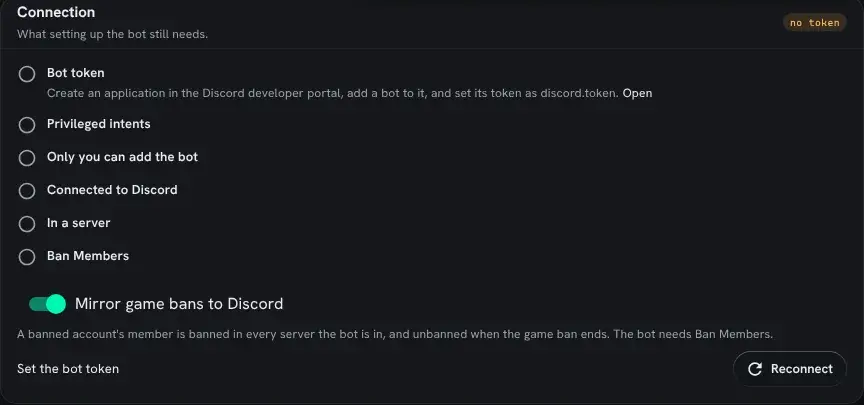

• Connection shows what setting up the bot still needs, with a link to set its token, the invite link once the bot is ready, a Reconnect button, and the switch that mirrors game bans.
• Linked channels lists each link with its feed and state. A stopped link shows the reason and a Resume button. Pick a channel the bot can see to link a new one.

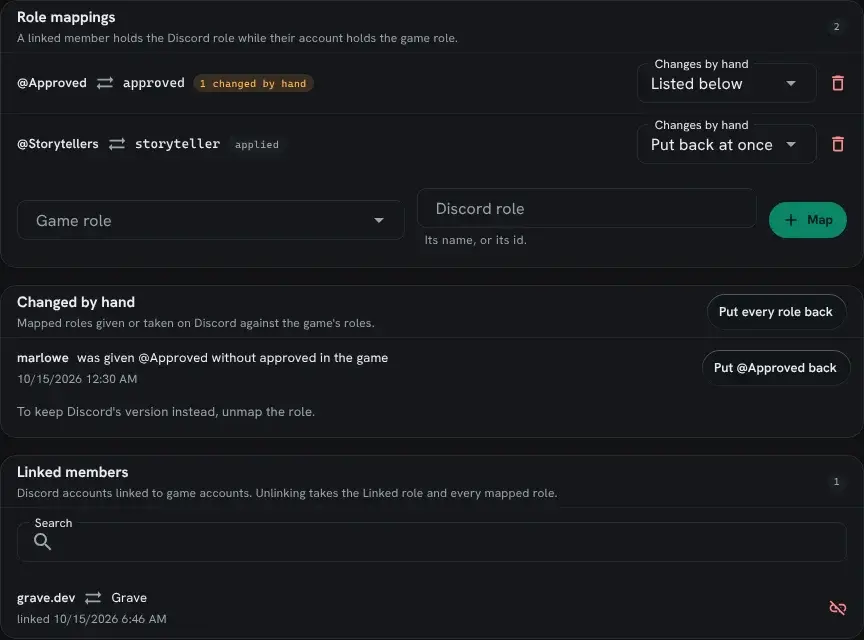

• Role mappings maps a game role to a Discord role, sets whether a change made by hand is listed or put back at once, and unmaps a role.
• Changed by hand lists those changes, with a button to put back one role or all of them.
• Linked members finds a member by their Discord name, their account or their Discord id, and unlinks them.

When a link stops

When Discord refuses a channel’s posts for a reason a retry won’t fix, the link stops. Its lines are not posted, and @discord shows the reason in the State column. Fix the cause, then @discord/resume <id> posts again.

The common causes:

• The webhook was deleted in Discord’s channel settings. The bot makes a new one by itself and carries on. If it was deleted again within ten minutes, the link stops, since someone is removing it on purpose.
• The bot lost a permission in the channel. Give it back, then resume.
• Discord refused five posts within a minute. That points at a bug, and the server log has the details.

Posts go through each channel’s webhook, not the bot’s connection, so links keep posting while the bot is disconnected. Only making a new webhook needs the bot connected.
